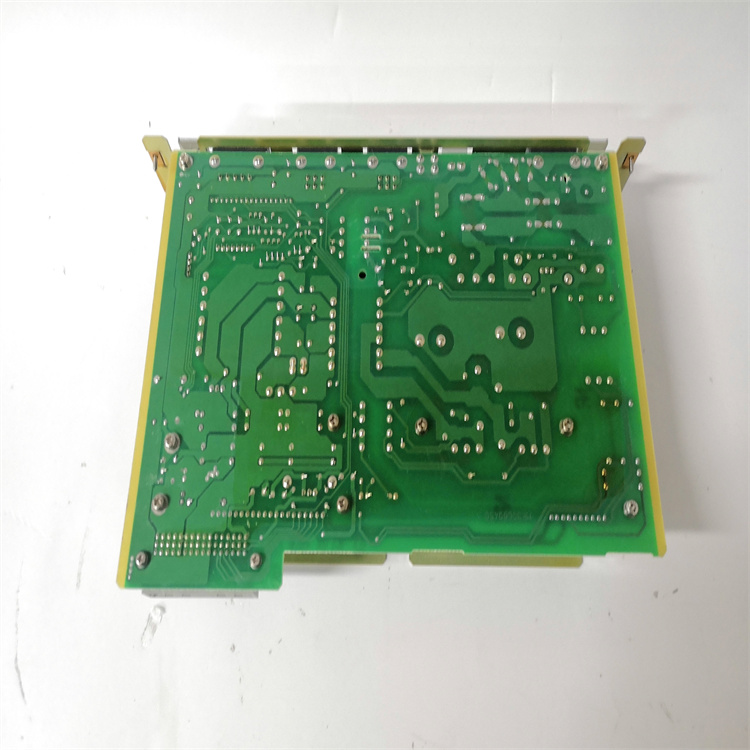

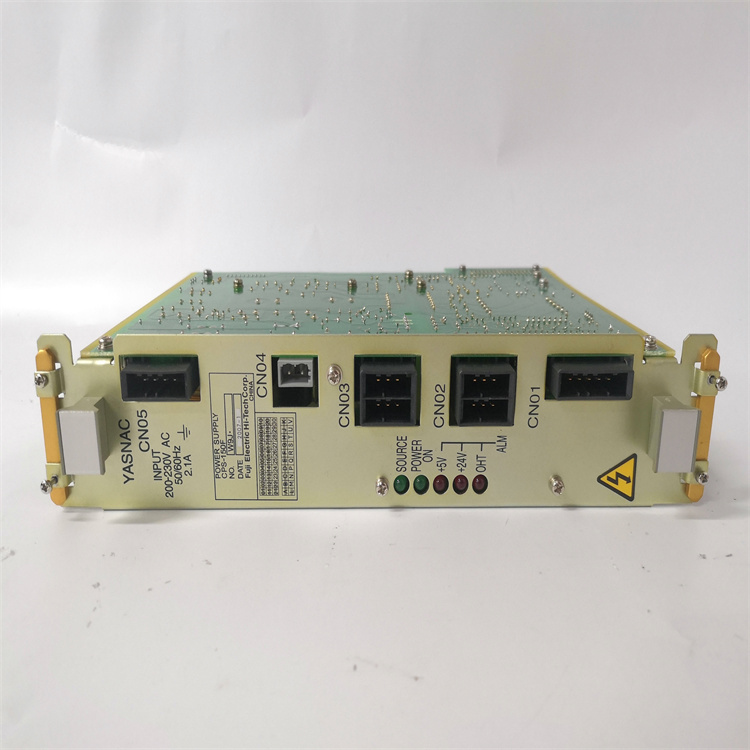

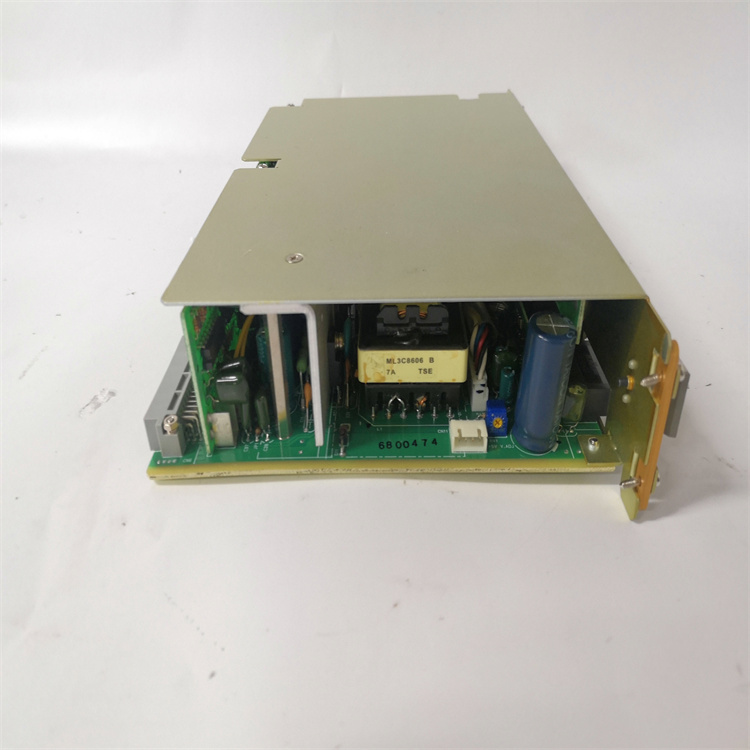

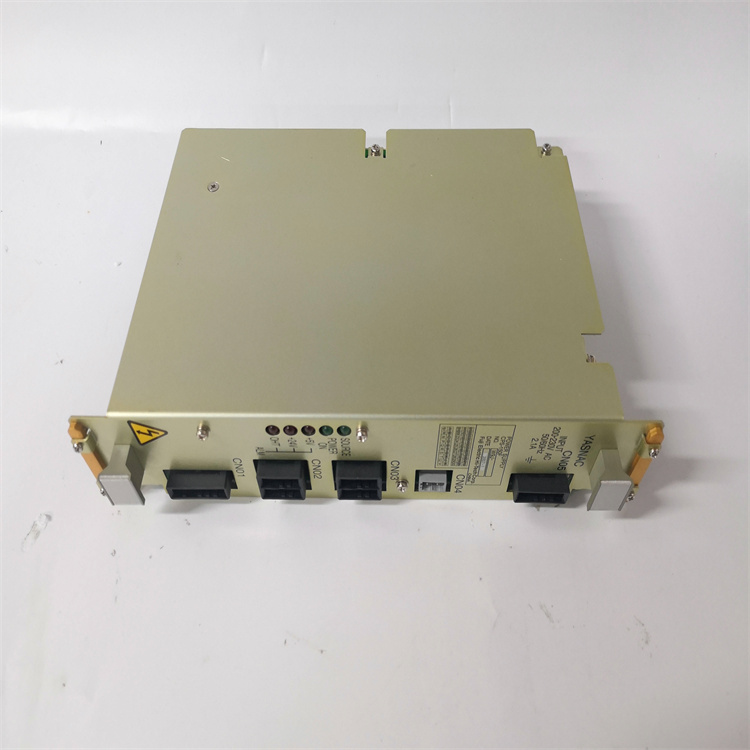

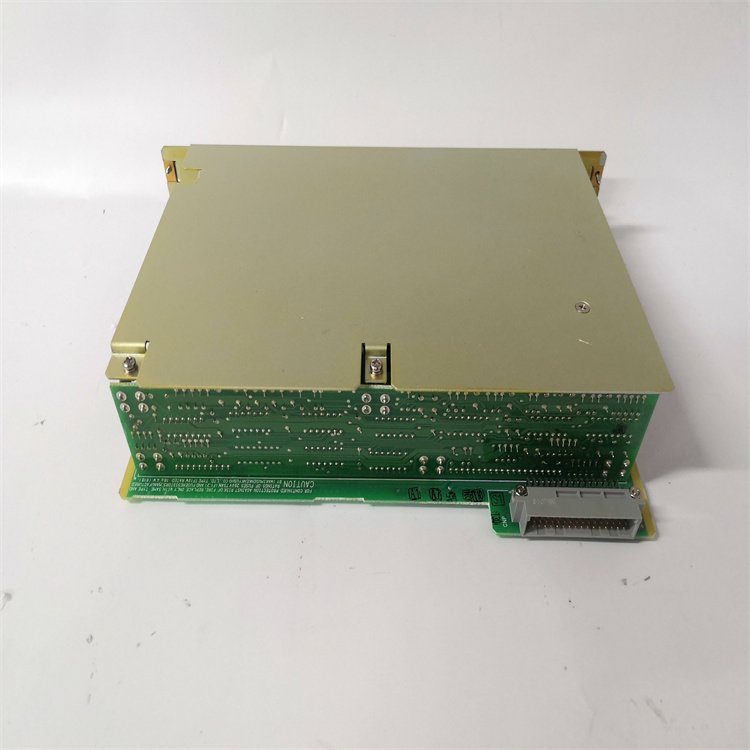

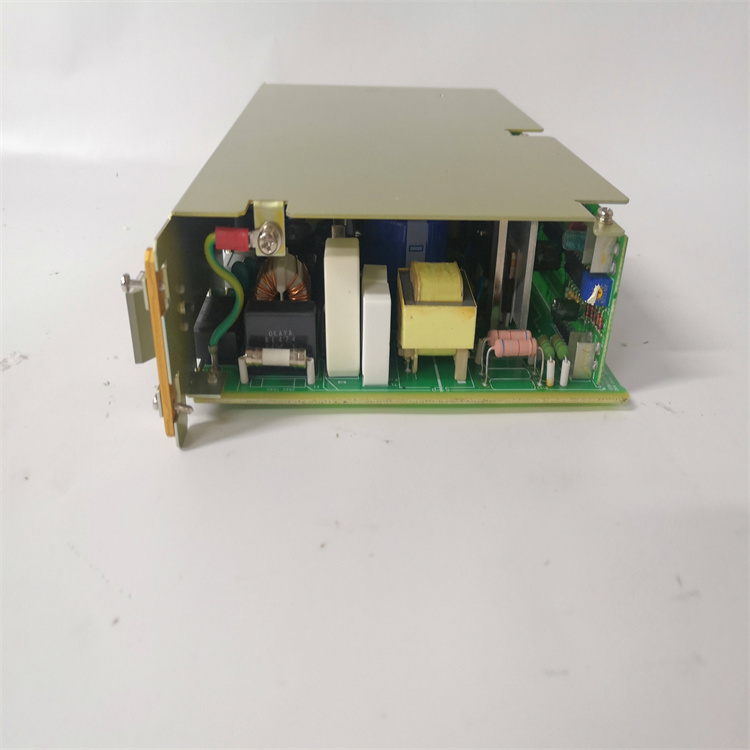

YASKAWA CPS-150F 控制电源单元

这款安川/亚斯纳克CN05和CPS-150F电源用于NX100和XRC MOTOMAN系列。输入电压- 200-230伏交流电，频率- 50/60赫兹，电流- 2.1安。控制电源装置(CPS-150F)该装置向I/O接触器装置(JZNC-XIU 01)和编程手控盒提供DC电源(DC5V，24V)。它还配备了用于打开和关闭控制电源的输入功能。1.断开连接到控制电源装置的所有电缆。2.松开连接控制电源装置和机架的四个上部和下部螺钉。(每侧两个螺钉)。3.握住连接在上侧和下侧的控制杆，从机架中拉出控制电源装置。4.将新的控制电源单元插入机架的插槽中。5.推动新的控制电源单元，直到它被放置在其他板的相同位置。6.拧紧上部和下部螺钉。7.连接所有断开的电缆。系统控制电路板(JANCD-XCP01)该板用于控制整个系统、显示至编程手控盒、控制操作键、控制操作、计算插补以及连接伺服控制电路板(带有串行通信板JANCD-XIF03或JANCD-XIF04)。该板具有PC卡接口和RS-232C串行接口。扩展CMOS存储器时，可以安装JANCD-XMM 01板(可选)。

The An Chuan/Snak CN05 and CPS-150F power supplies are used in NX100 and XRC MOTOMAN series. Input voltage-200-230V AC, frequency-50/60Hz, current-2.1A. Control unit (CPS-150F) This unit supplies DC power (DC5V, 24V) to I/O contactor unit (JZNC-XIU 01) and programming manual control box. It is also equipped with an input function for turning on and off the control power supply. 1. Disconnect all cables connected to the control power supply unit. 2. Loosen the four upper and lower screws connecting the control power supply unit and the rack. (two screws on each side). 3. Hold the control levers connected to the upper and lower sides, and pull out the control power supply unit from the rack. 4. Insert the new control power supply unit into the slot of the rack. 5. Push the new control power supply unit until it is placed in the same position of other boards. 6. Tighten the upper and lower screws. 7. Connect all disconnected cables. System control circuit board (JANCD-XCP01). This board is used to control the whole system, display to the programmed manual control box, control operation keys, control operation, calculate interpolation and connect the servo control circuit board (with serial communication board JANCD-XIF03 or JANCD-XIF04). The board has PC card interface and RS-232C serial interface. You can install JANCD-XMM 01 board (optional) when expanding CMOS memory.
